Applications：
Cell Grade
Standard configuration uses brand‑new Grade A 314Ah LiFePO₄ cells. The cell brand and final specification are confirmed in the order
Certifications
Available documents may include CE, UN38.3, IEC 62619, MSDS and RoHS, subject to the confirmed product configuration and destination‑market requirements. Please verify the exact certificate holder and model coverage before ordering.

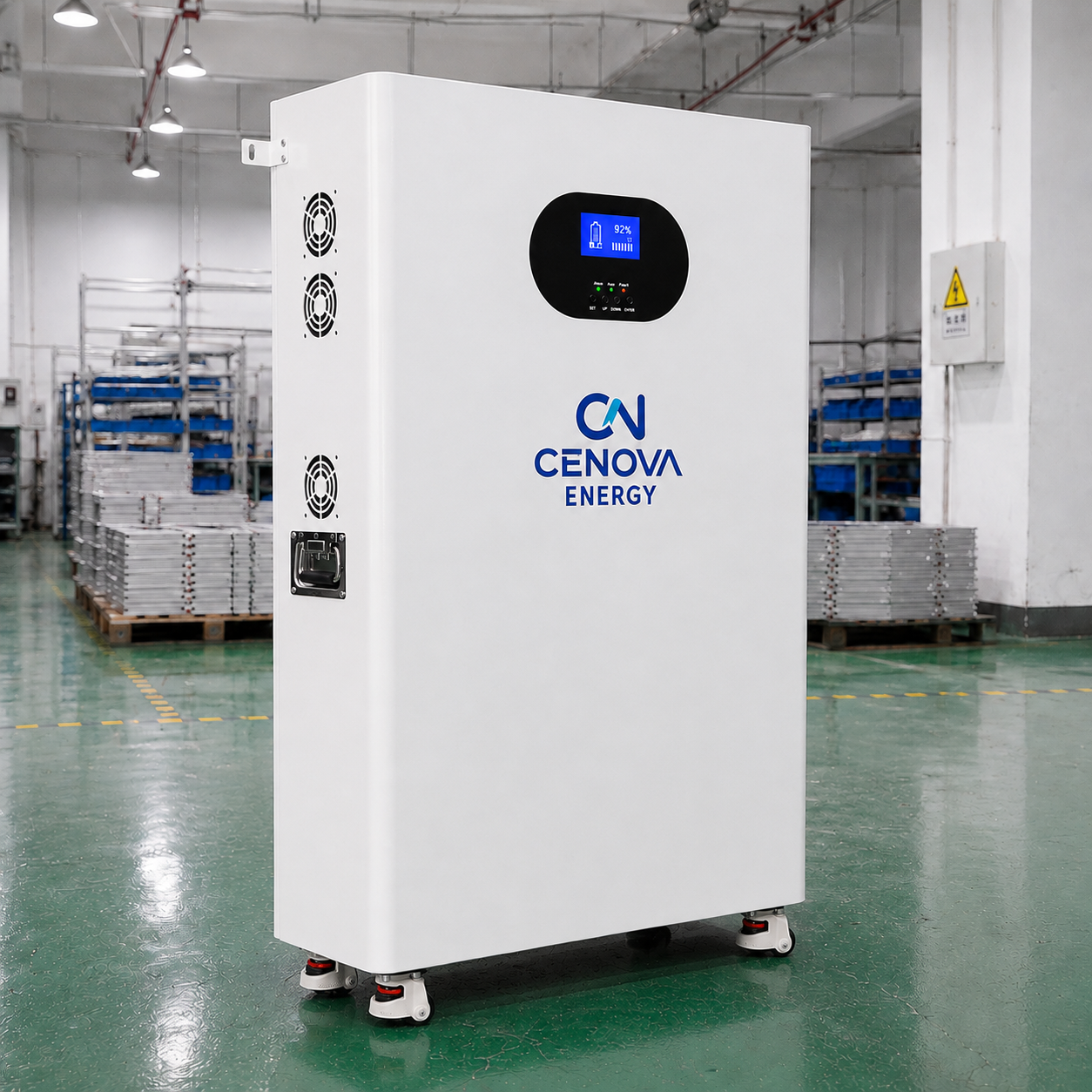

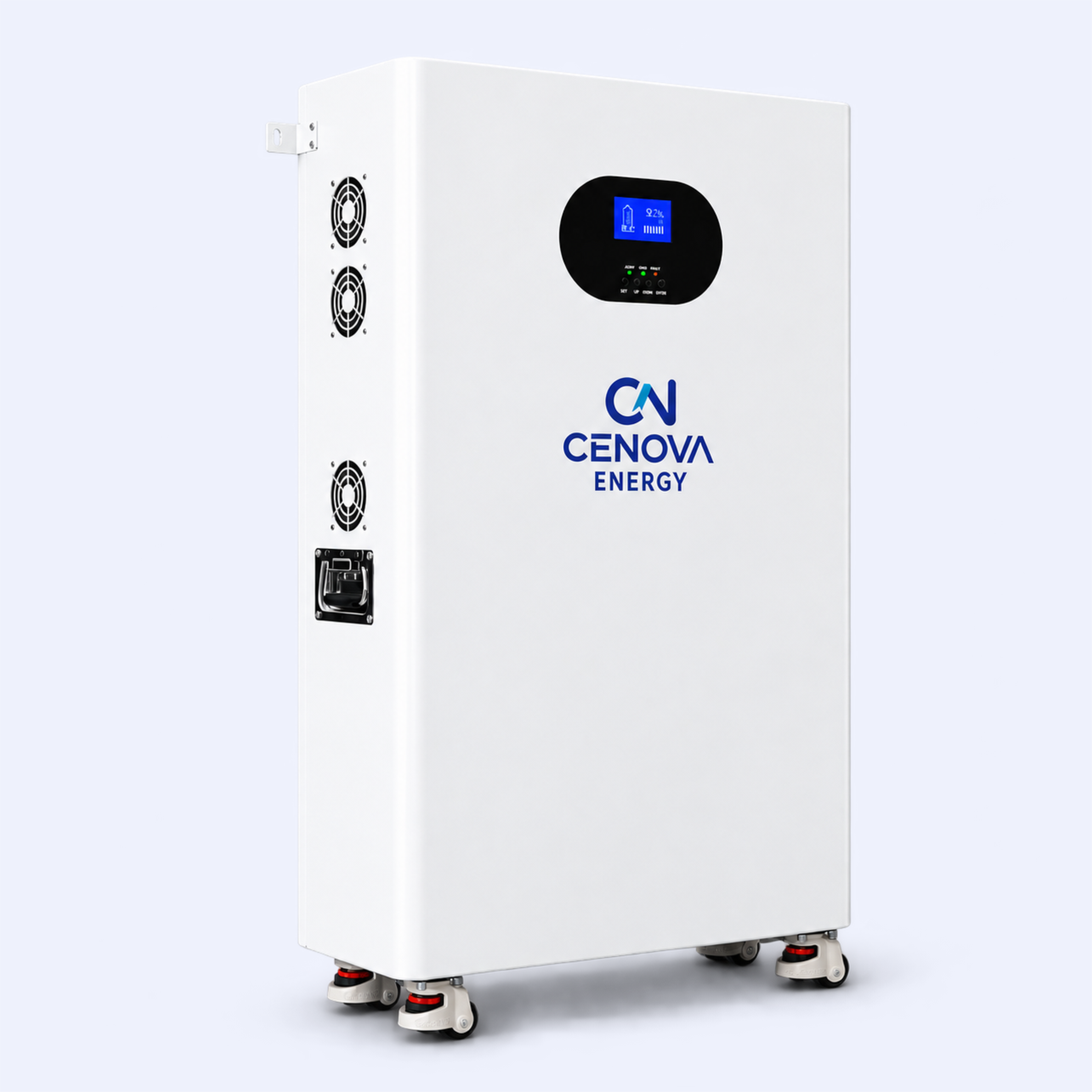

Integrated Inverter
The battery and solar inverter are integrated into one enclosure for photovoltaic charging, AC input and AC output. Final electrical configuration and grid requirements are subject to order confirmation.
MOQ
MOQ is 1 unit for standard products. Customized orders are subject to the confirmed configuration and customization requirements.
Sample Available
Sample orders are available for product evaluation and inverter communication testing before bulk purchasing.
Production Lead Time
Production lead time is typically 15–25 working days after order confirmation, subject to order quantity, product configuration, customization requirements and the current production schedule.

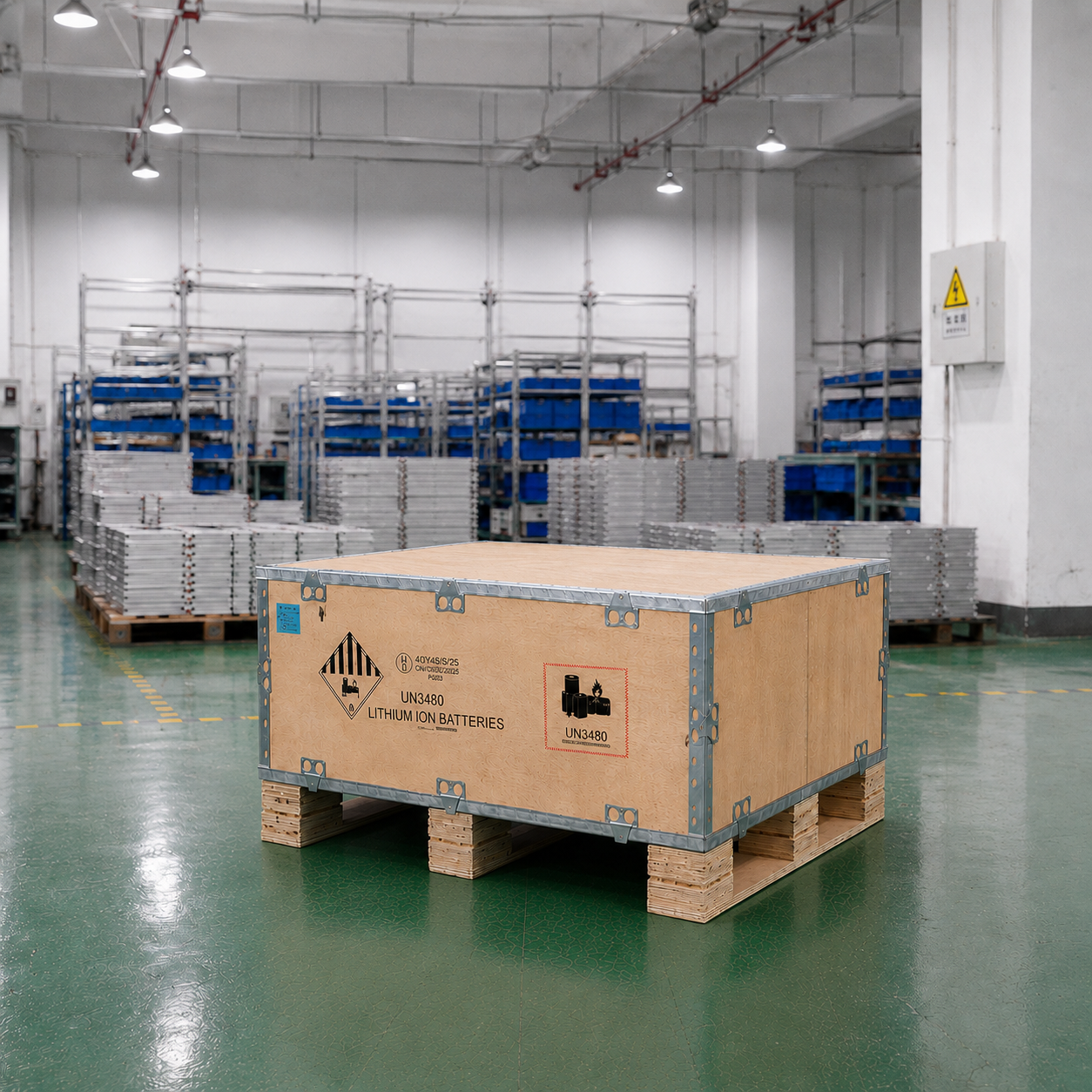

Packaging
Export‑grade protective packaging is available. The final packing method, package dimensions and gross weight are subject to actual delivery and the confirmed order requirements.
OEM/ODM Available
OEM/ODM support includes customized brand logo, product color, communication protocol, inverter matching, packaging and manuals.
Battery Specifications
|
Parameter |
value |
|
Battery Chemistry |
LiFePO₄ |
|
Cell Specification |
3.2V / 314Ah |
|
Array Mode |
16S1P |
|
Battery Specification |
51.2V / 314Ah |
|
Nominal Energy |
16kWh |
|
Operating Voltage Range |
40–58.4V |
|
Cycle Life |
≥6,000 cycles (70%) |
|
Energy Storage Expansion |
Up to 14 expansion units |
|
Parallel Units |
1‑9 units |
|
Three‑Phase Output |
Supported with 3 or more units in parallel |
|
Maximum Continuous Discharge Current |
200A |
PV & AC Specifications
|
Parameter |
value |
|
Maximum PV Input Power |
15,000W |
|
PV Input Voltage Range |
60–450V |
|
Number of MPPTs |
2 |
|
Rated Output Power |
11,000W |
|
Peak Power |
22,000VA |
|
Transfer Time |
10 ms (UPS Mode) / 20 ms (APL Mode) |
|
Maximum Efficiency |
>98% |
|
Rated Output Voltage |
220/230/240Vac ±5% (L+N+PE) |
|
AC Input Voltage ‑ Normal Mode |
90–280Vac (Normal Mode) / 170–280Vac (UPS Mode) |
|
Rated Frequency |
50/60Hz |
|
Waveform |
Pure Sine Wave |
Communication, Dimensions & Installation
|
Parameter |
value |
|
Communication Interfaces |
RS485 / CAN / Dry Contact / Built‑in Bluetooth |
|
Status Indicators |
Running / Alarm / SOC |
|
Charging Modes |
Solar Only / Utility Priority / Solar Priority / Hybrid Charging |
|

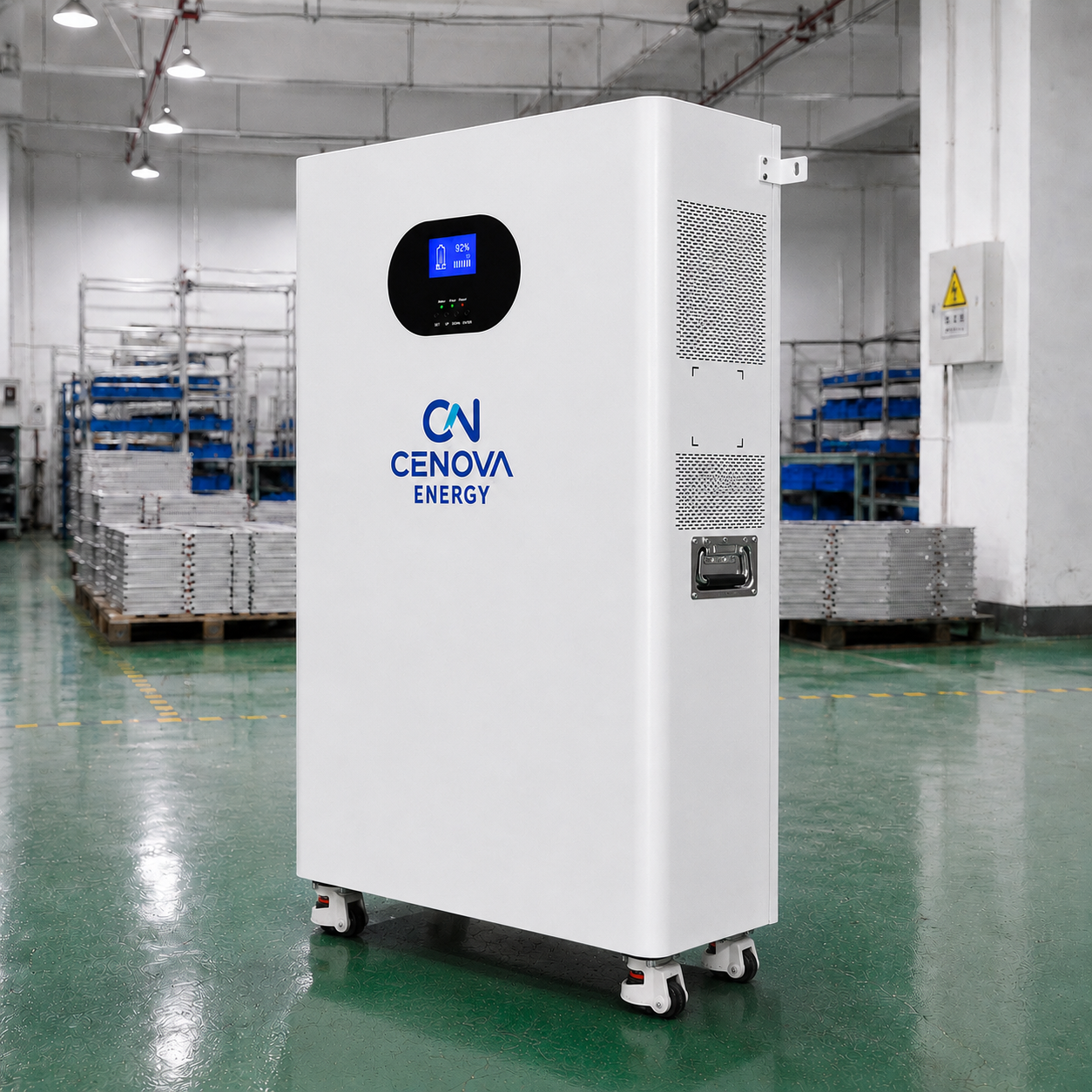

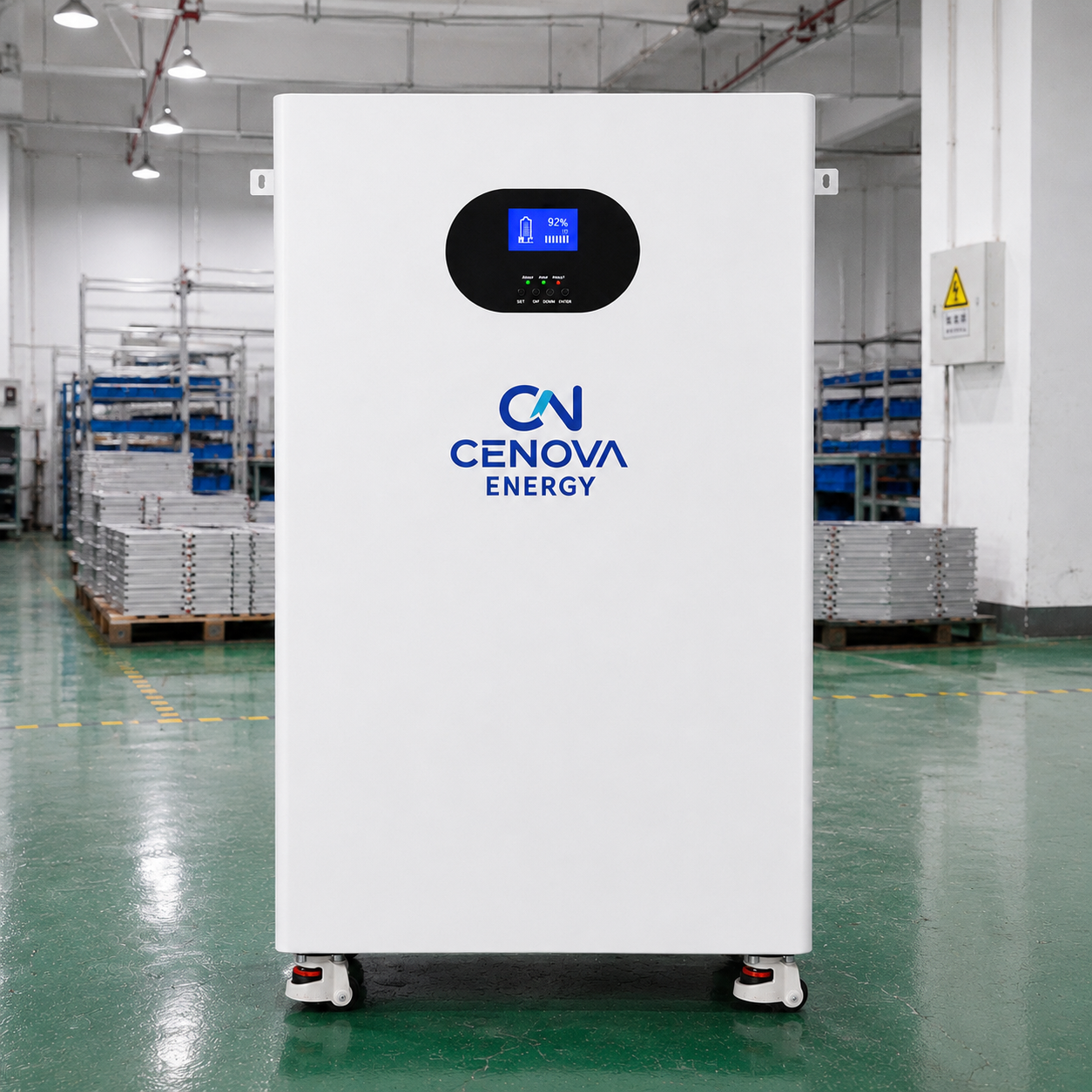

Installation |
Wheeled floor‑standing |
|
Net Dimensions (W × D × H) |
640 × 246 × 1,110 mm (excluding mounting parts) |
|
Net Weight |
126 ± 1 kg |
| Cooling Method |
Forced Air Cooling |
| Operating Humidity |
5%–95% RH |
Operating Temperature
|
Parameter |
value |
|
Charging Temperature |
0°C to 55°C |
|
Discharging Temperature |
−20°C to 60°C |
|
Storage Temperature |
−10°C to 45°C |
