Applications：
Cell Grade
Standard configuration uses brand-new Grade A 314Ah LiFePO4 cells. The cell brand and final specification are confirmed in the order.
Certifications
Available documents may include CE, UN38.3, IEC 62619, MSDS and RoHS, subject to the confirmed product configuration and destination-market requirements. Please verify the exact certificate holder and model coverage before ordering.
Compatible Inverters
Communication matching is available for selected models from Deye, Growatt, GoodWe, Victron, Voltronic, SMA, Studer and AISWEI. Final compatibility must be confirmed according to the specific inverter model and communication protocol.
MOQ
MOQ is 1 unit for standard products. Customized orders are subject to the confirmed configuration and customization requirements.
Sample Available
Sample orders are available for product evaluation and inverter communication testing before bulk purchasing.
Production Lead Time
Production lead time is typically 15–25 working days after order confirmation, subject to order quantity, product configuration, customization requirements and the current production schedule.
Packaging

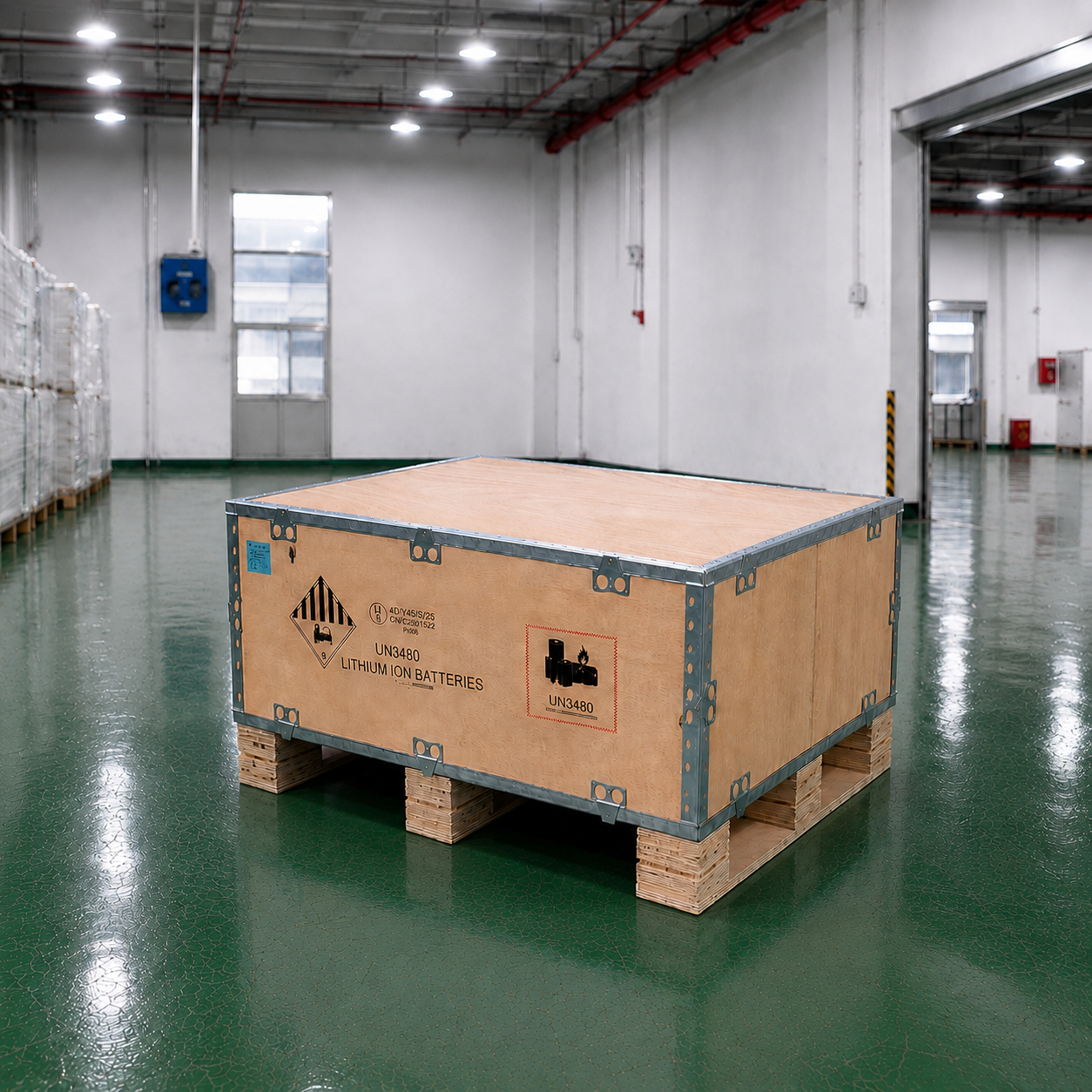

Export-grade protective packaging includes foam protection, a protective bag, carton and an optional wooden case. Customized labels, packaging and manuals are available.
OEM/ODM Available
OEM/ODM support includes customized brand logo, product color, communication protocol, inverter matching, packaging and manuals.
Battery Specifications
|
Parameter |
value |
|
Battery Chemistry |
LiFePO₄ |
|
Nominal Energy |
16kWh |
|
Nominal Voltage |
51.2V |
|
Rated Capacity |
314Ah |
|
Operating Voltage Range |
40–58.4V |
|
Standard Charge/Discharge Current |
100A |
|
Maximum Continuous Charge/Discharge Current |
200A |
|
Cycle Life |
≥6,000 cycles |
|
Maximum Parallel Units |
15 Units |
Communication & Monitoring
|
Parameter |
value |
|
Communication Interfaces |
RS485 / RS232 / CAN / Dry Contact |
|
Status Indicators |
Running / Alarm / SOC |
|
Bluetooth Monitoring |
Built‑in |
|
Inverter Communication |
CAN / RS485 |
Dimensions & Weight
|
Parameter |
value |
|
Installation |
Wheeled Floor-Standing |
|
Base Type |
Four-Wheel Mobile Base |
|
Product Dimensions |
270 × 550 × 728 mm |
|
Net Weight |
126 ± 1 kg |
|
Package Dimensions |
815 × 615 × 435 mm (subject to actual delivery) |
|
Gross Weight |
140 kg |
Operating Temperature
|
Parameter |
value |
|
Charging Temperature |
0°C to 55°C |
|
Discharging Temperature |
−20°C to 60°C |
|
Storage Temperature |
−10°C to 45°C |
