| Item | Integrated Cabinet | Key Specification |
| Primary Function | PV, battery, grid, generator and load coordination | 30kW rated output / 157.696kWh battery |

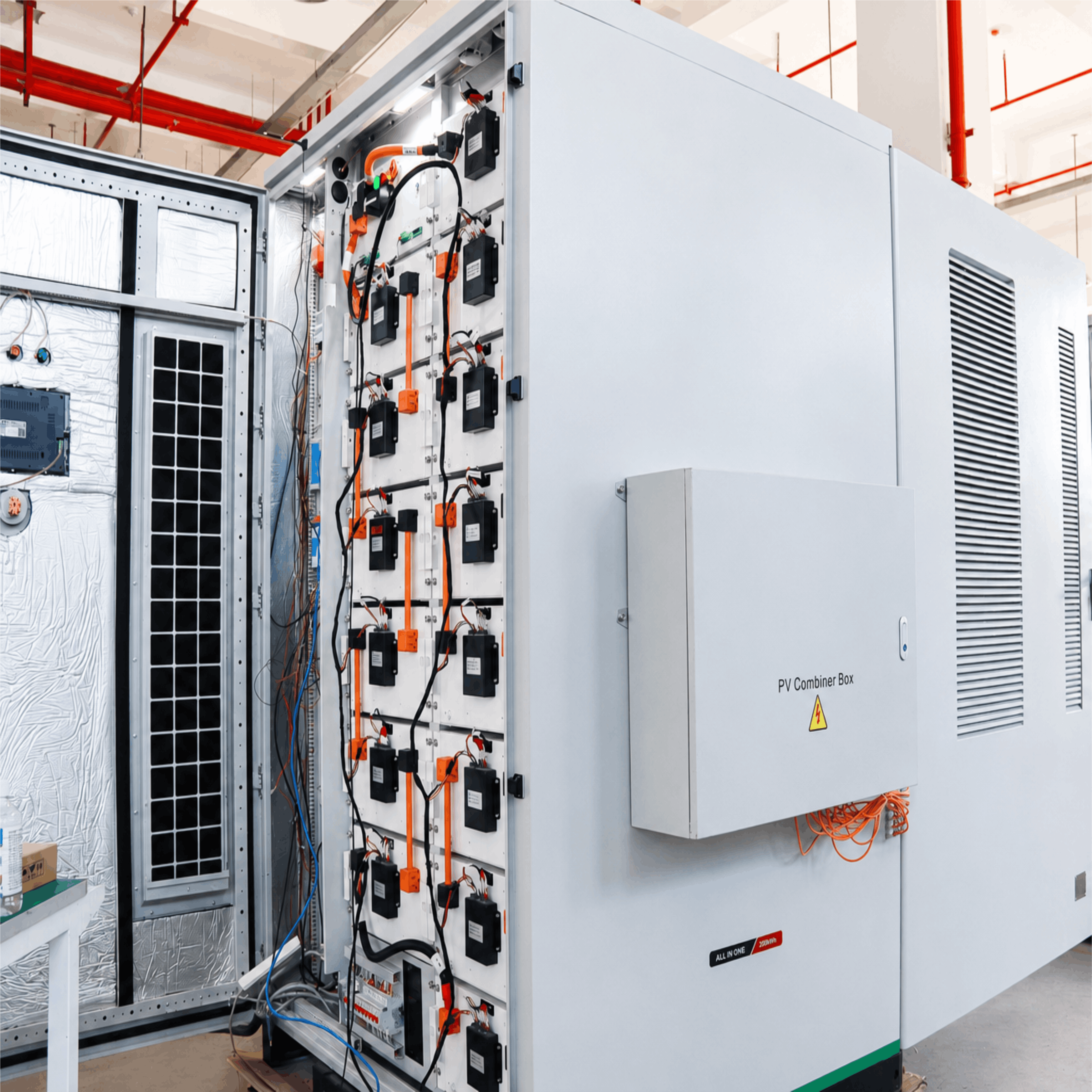

| Main Configuration | 11 LiFePO4 packs, BMS/PDU and 30kW hybrid inverter | Intelligent air conditioner, fans and fire suppression |
| Electrical Rating | 563.2VDC nominal; 492.8-642.4VDC | Up to 60kW PV input; 3 MPPT channels |

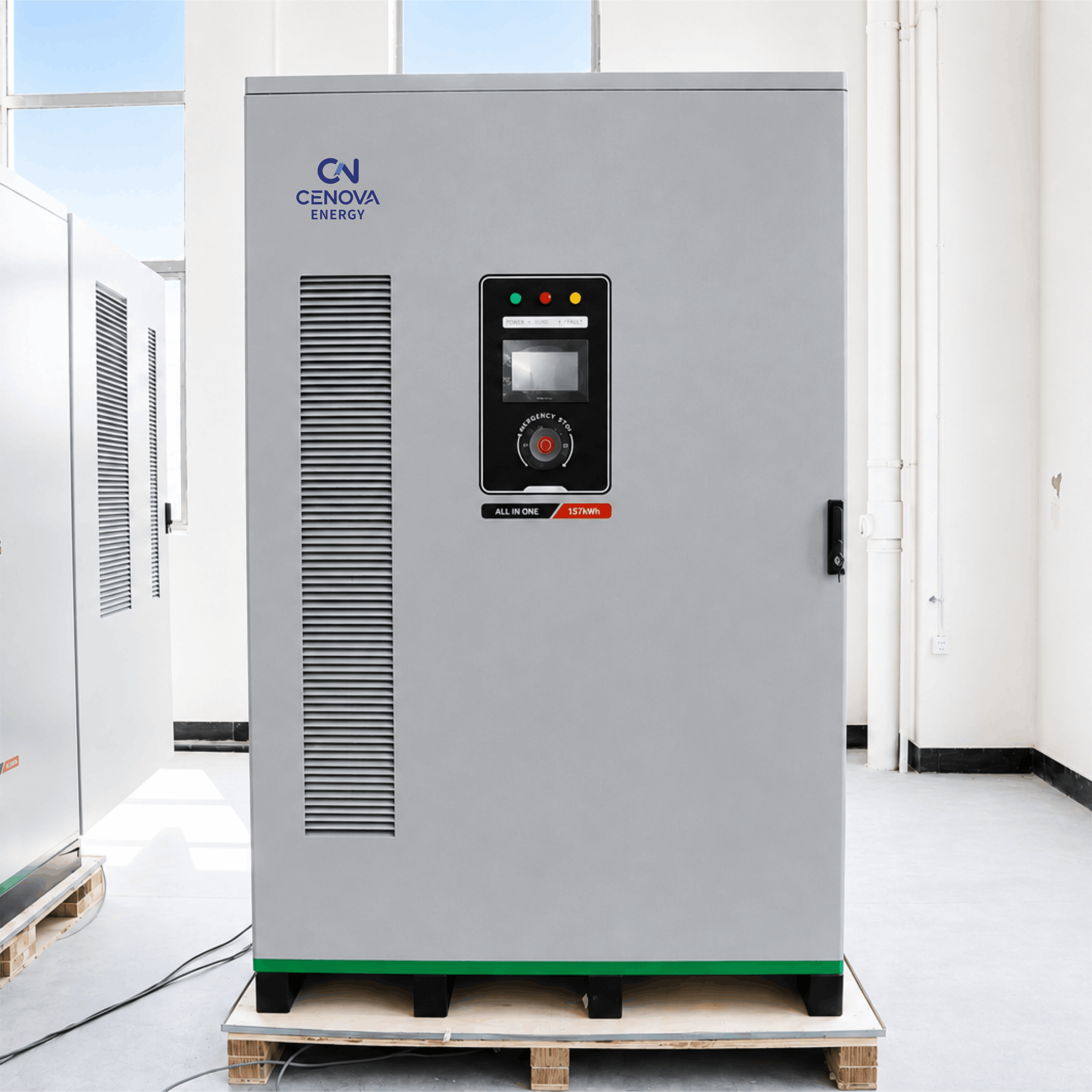

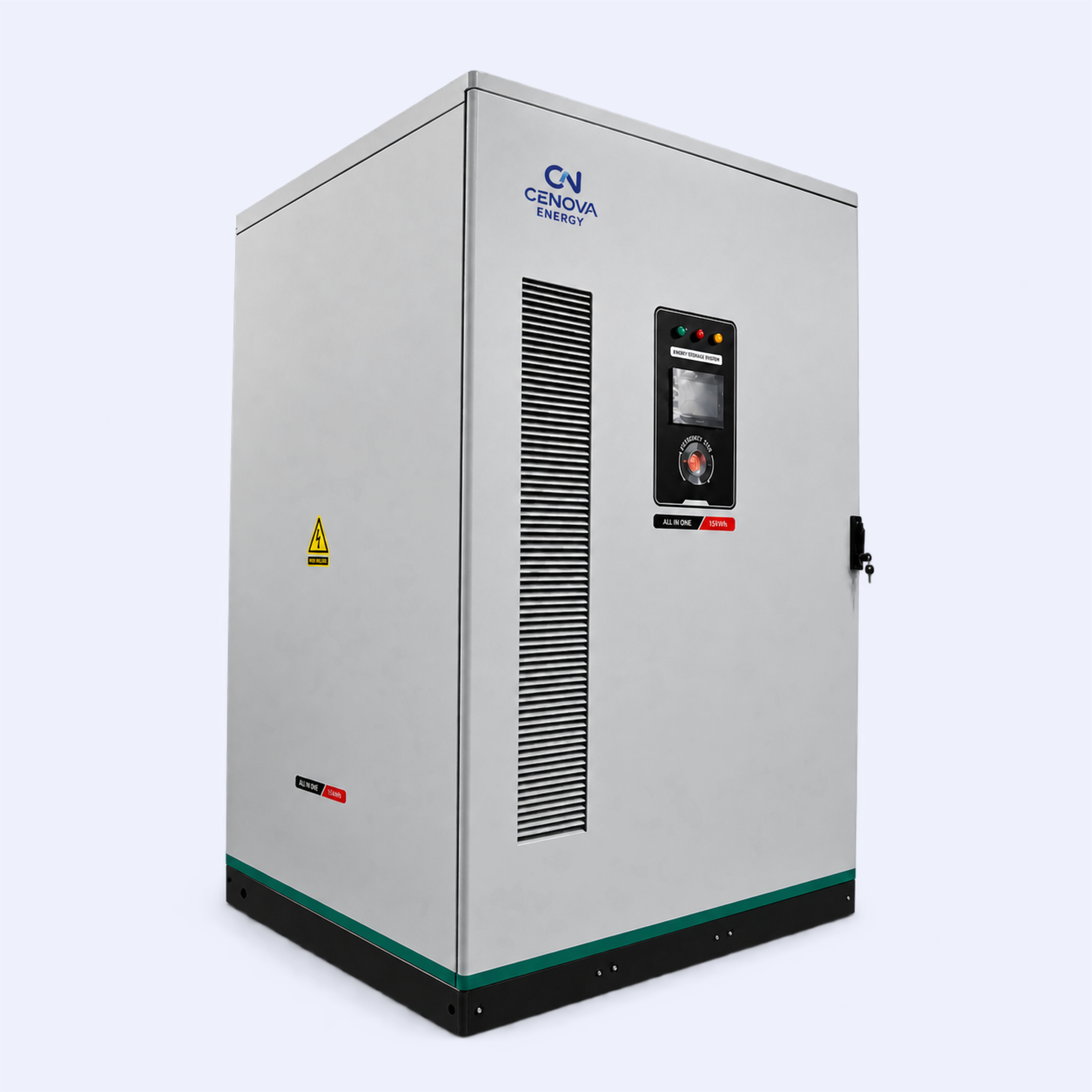

| Enclosure | 1455 × 1330 × 2200 mm | ≤2000kg; IP54 outdoor cabinet |
Applications：
Battery System & Storage Cabinet
|
Parameter |
value |
|
Cell Type |
LiFePO4, 3.2V / 280Ah |
|
Battery Pack Configuration |
14.336kWh / 1P16S |
|
Battery Pack Quantity |
11 |
|
Battery System Configuration |
1P176S |
|
Nominal Energy |
157.696kWh |
|
Nominal Voltage |
563.2VDC |
|
Battery Voltage Range |
492.8-642.4VDC |
|
Charge/Discharge Rate |
0.5P |
|
Standard Charge/Discharge Current |
140A |
|
Maximum Continuous Charge/Discharge Current |
200A |
|
Cycle Life |
≥10,000 cycles (70%) |
|
Battery Cooling |
Air cooling |
|

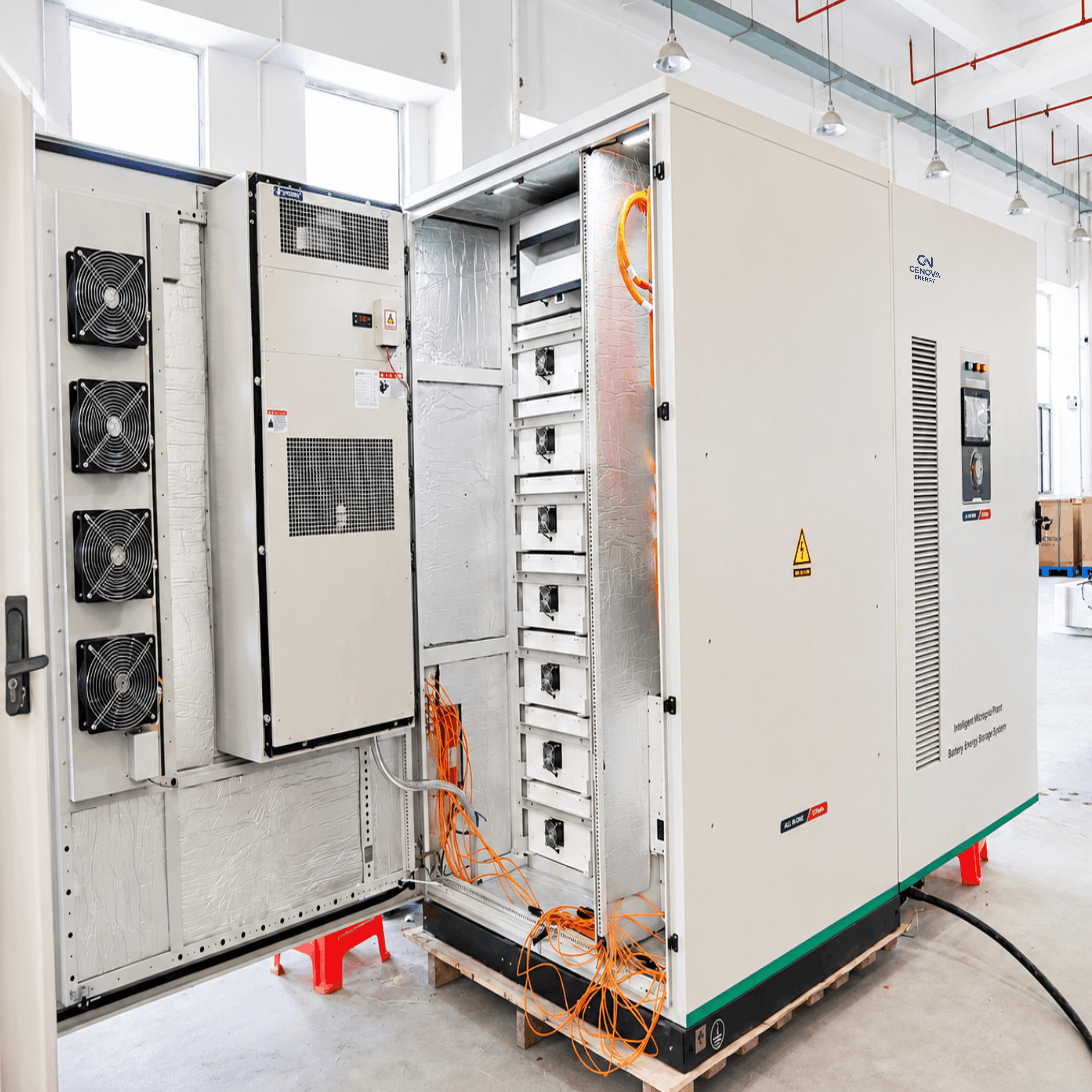

Cabinet Thermal Management |
1500W intelligent air conditioner with forced-air cooling |
|
Fire Suppression |
Perfluorohexanone / Aerosol (configuration dependent) |
|
Cabinet Dimensions (W × D × H) |
1455 × 1330 × 2200 mm |
|
System Weight |
≤2000kg |
PV Input & Grid-Connected AC
|
Parameter |
value |
|
Maximum PV Input Power |
60kW |
|
PV Input Voltage Range |
150-850V |
|
MPPT Quantity |
3 |
|
PV Input Strings |
2 / 2 / 2 |
|
Maximum Input Current |
40A / 40A / 40A |
|
Rated Grid Output Power |
30kW |
|
Maximum Grid Output Apparent Power |
30kVA |
|
Rated Grid Voltage |
3L/N/PE; 220/380V; 230/400V |
|
Rated Frequency |
50Hz / 60Hz |
|
Maximum Output Current |
45A |
|
Power Factor Range |
0.8 leading to 0.8 lagging, adjustable |
|
Total Current Harmonic Distortion |
<3% |
|
Maximum Inverter Efficiency |
98.5% |
Off-Grid Output & Generator Side
|
Parameter |
value |
|
Off-Grid Output Apparent Power |
30kVA |
|
Rated Off-Grid Voltage |
3L/N/PE; 220/380V; 230/400V |
|
Rated Off-Grid Frequency |
50Hz / 60Hz |
|
Maximum Off-Grid Output Current |
45A |
|
Grid/Off-Grid Transfer Time |
<10ms |
|
Maximum Generator Charging Power |
30kW |
| Rated Generator Voltage |
3L/N/PE; 220/380V; 230/400V |
| Maximum Generator-Side Apparent Power |
30kVA |
| Rated Generator Frequency |
50Hz / 60Hz |
| Maximum Generator-Side Current |
45A |
System & Environmental Data
|
Parameter |
value |
|
Diesel Generator Interface |
Supported |
|
Off-Grid Operation |
Supported |
|
Protection Rating |
IP54 |
|
System Cooling |
Intelligent forced-air cooling with cabinet air conditioner |
|
Operating Temperature |
-20°C to +55°C; derating above 40°C |
|
Storage Temperature |
-20°C to +55°C |
|
Relative Humidity |
5%-95%, non-condensing |
|
Noise |
<75dB |
|
Operating Altitude |
≤3000m at full power; derating above 3000m |
|
Communication Interfaces |
CAN / RS485; Wi-Fi / LAN optional |
|

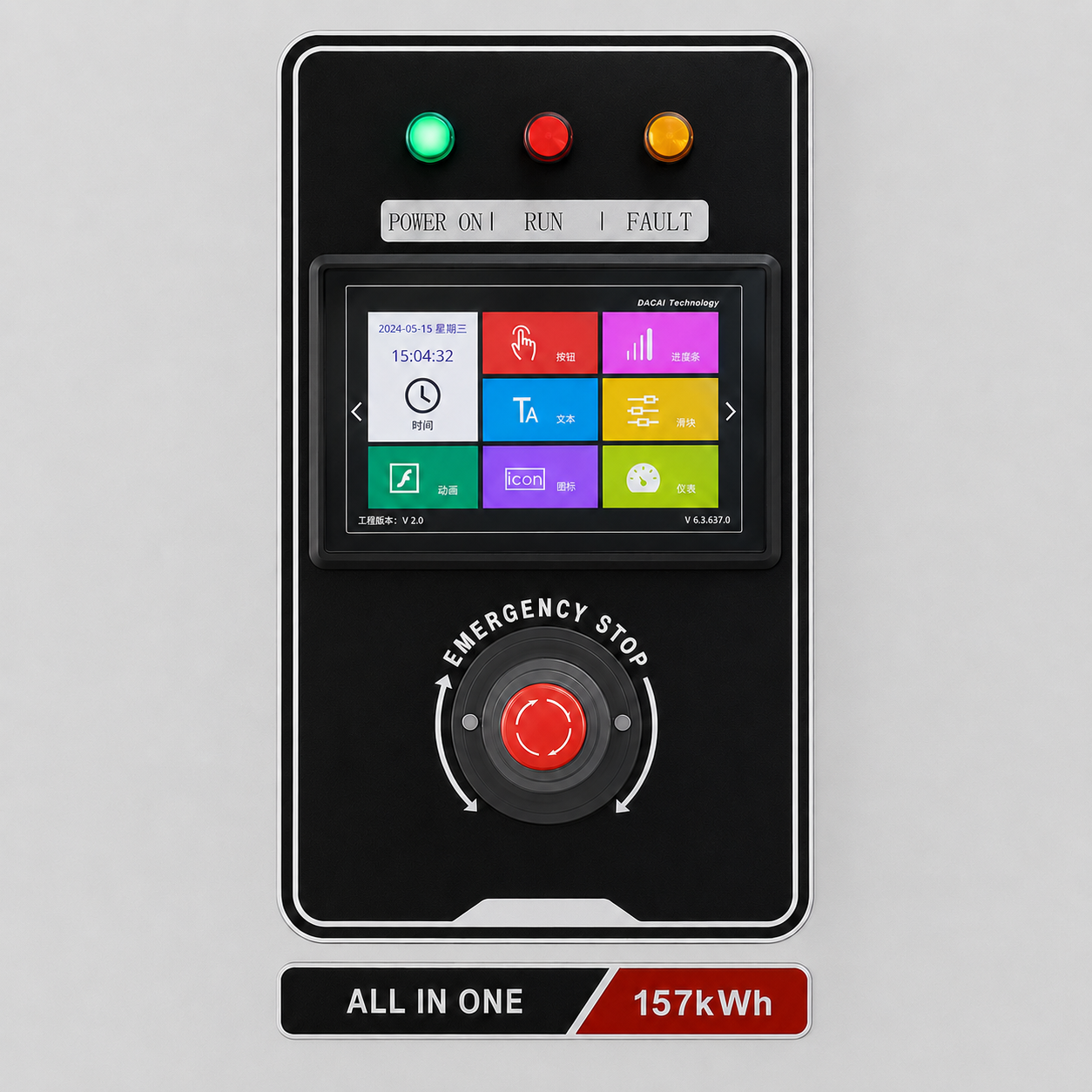

Human-Machine Interaction |
Touch screen / status indicators |
|
Protection Functions |
Over/under-voltage, insulation, grounding, grid, DC injection, feedback-current, residual-current, anti-islanding, load and over-temperature protection |
|
Night-Time Self-Consumption |
<15W |
|
Cabinet Dimensions (W × D × H) |
1455 × 1330 × 2200 mm |
|
System Weight |
≤2000kg |
| Interface | Rating | Terminal | Reference Cable |
| PV Input | 150-850V, up to 60kW | MC4 | 6 mm² |
| Grid Input | AC400V, 30kW | Customized | 16 mm² |
| Generator Input | AC400V, 30kVA | Customized | 10 mm² |
| Load Output | AC400V, 30kW | Customized | 10 mm² |
| Protective Earth | PE | Customized / OT-6 | 4 mm² |
| Communication | CAN / RS485; Wi-Fi / LAN optional | Project-specific | Project-specific |
Installation & Service Notes：
