Applications：
Cell Information
The system uses high-consistency, safe, reliable and long-life LiFePO4 cells. The cell brand and final specification are confirmed in the order.
Certifications
Available documents may include MSDS, UN38.3, IEC documentation, a Transportation Appraisal Report and CE, subject to the confirmed product configuration and destination-market requirements. Please verify the exact certificate holder and model coverage before ordering.

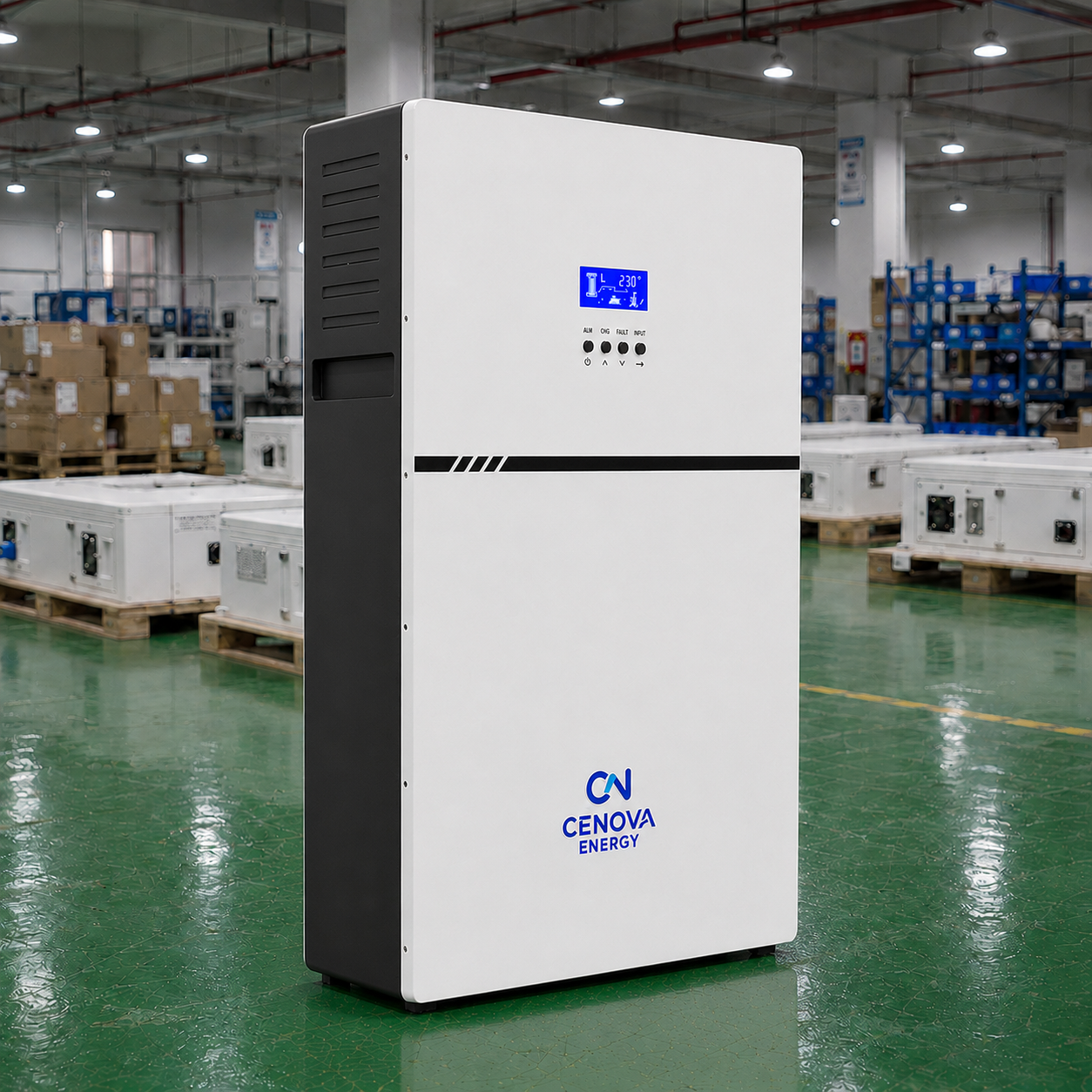

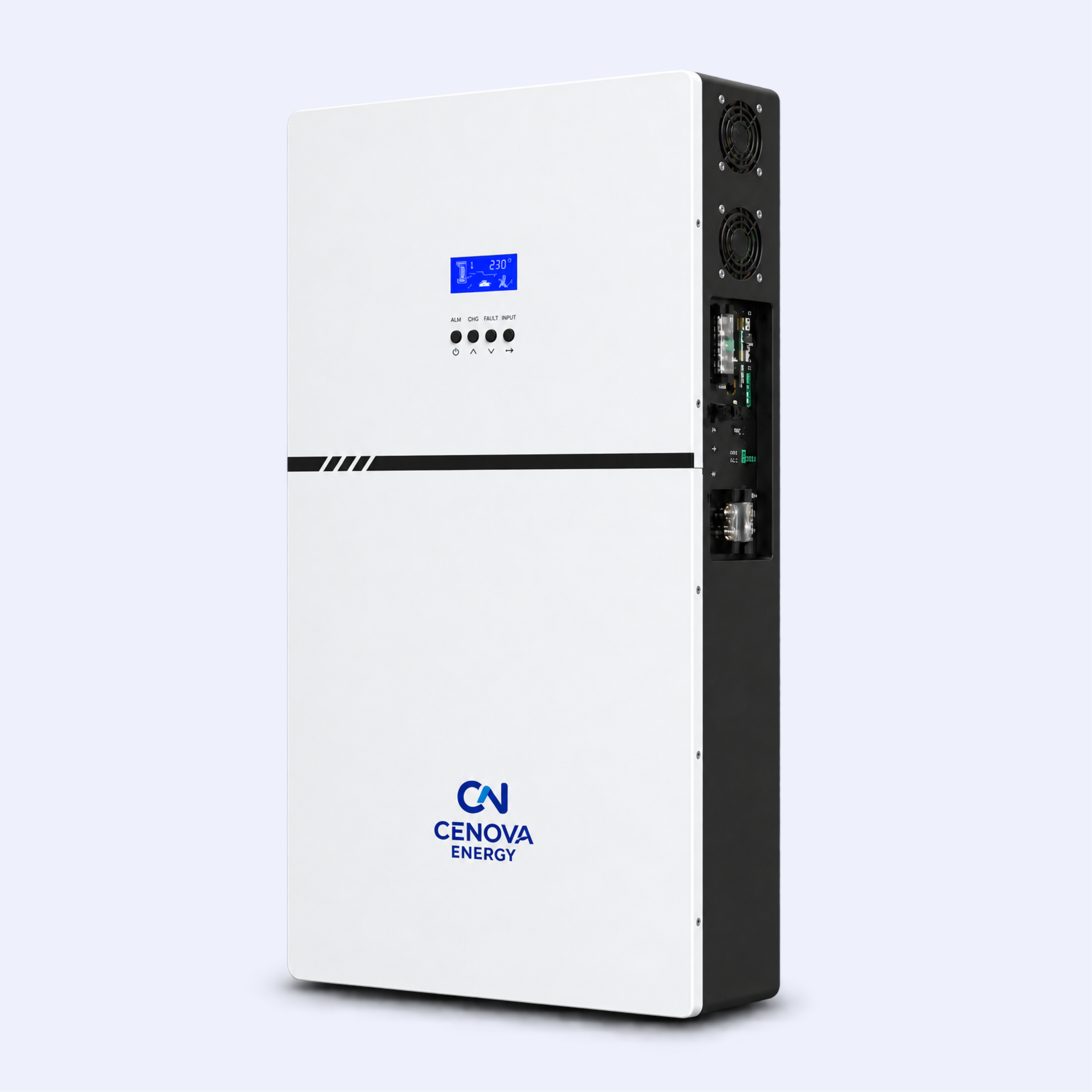

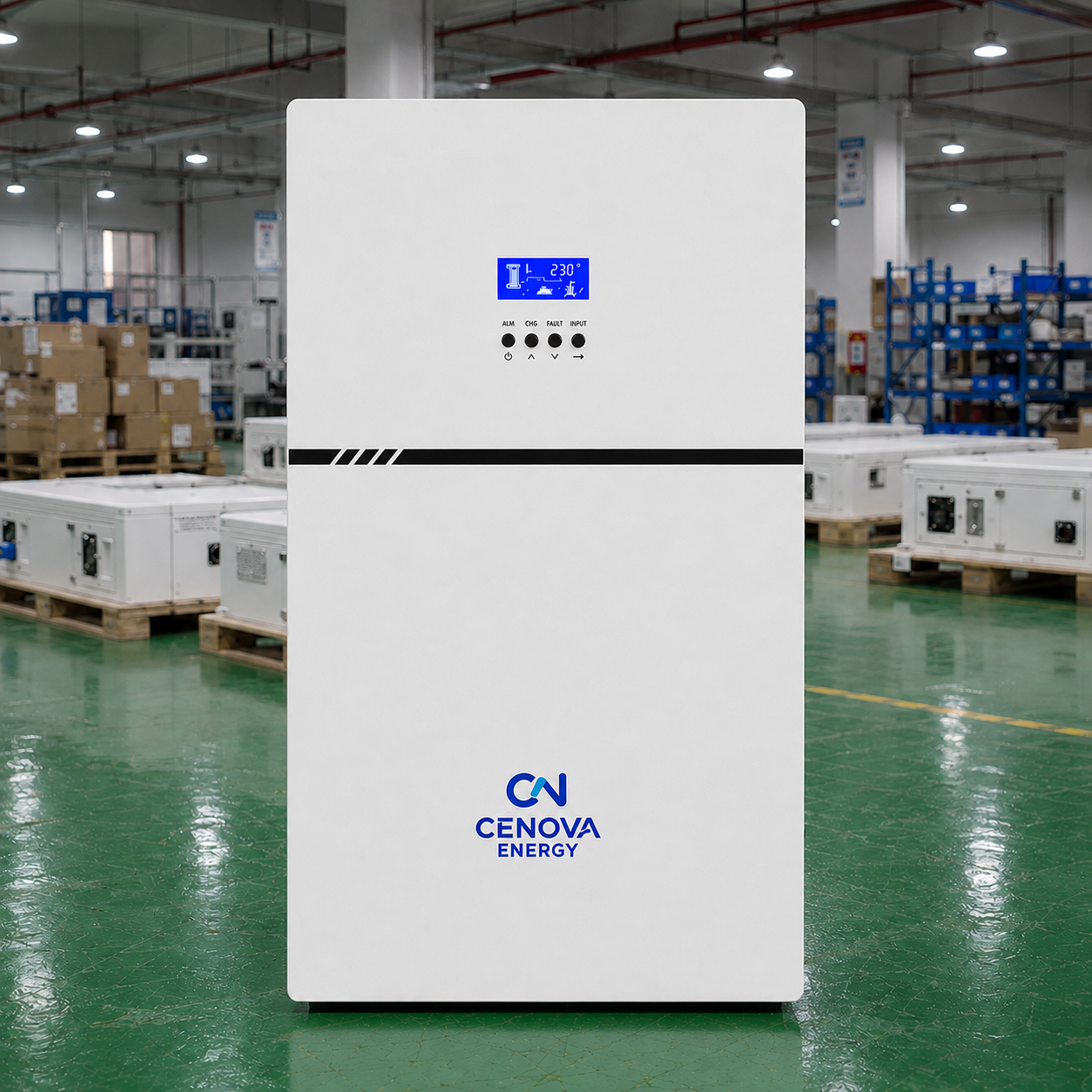

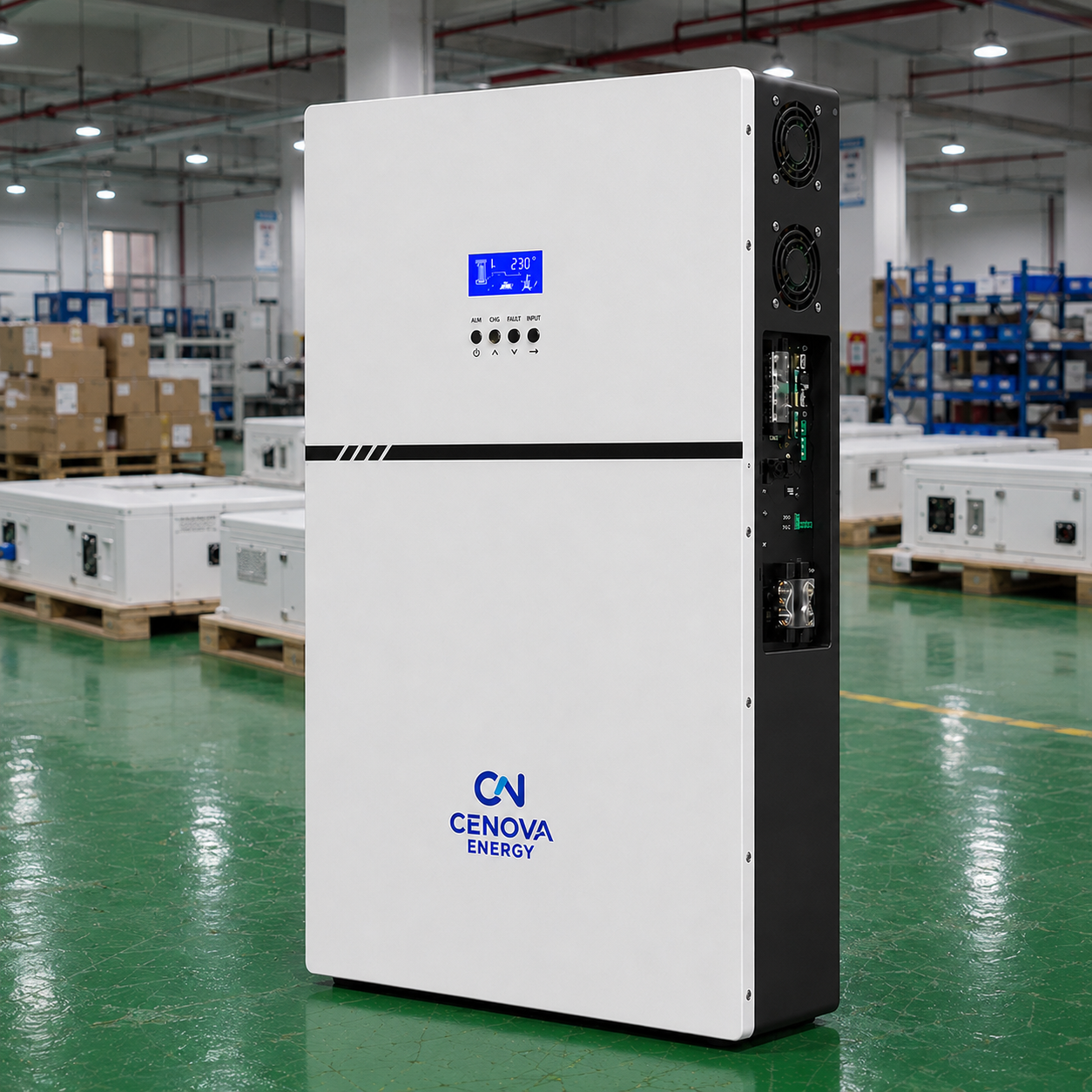

Integrated Inverter
The 10.24kWh battery and 5,000W solar inverter are integrated into one enclosure for photovoltaic charging, AC input and AC output. Final electrical configuration and grid requirements are subject to order confirmation.
MOQ
MOQ is 1 unit for standard products. Customized orders are subject to the confirmed configuration and customization requirements.
Sample Available
Sample orders are available for product evaluation and inverter communication testing before bulk purchasing.
Production Lead Time
Production lead time is typically 15–25 working days after order confirmation, subject to order quantity, product configuration, customization requirements and the current production schedule.

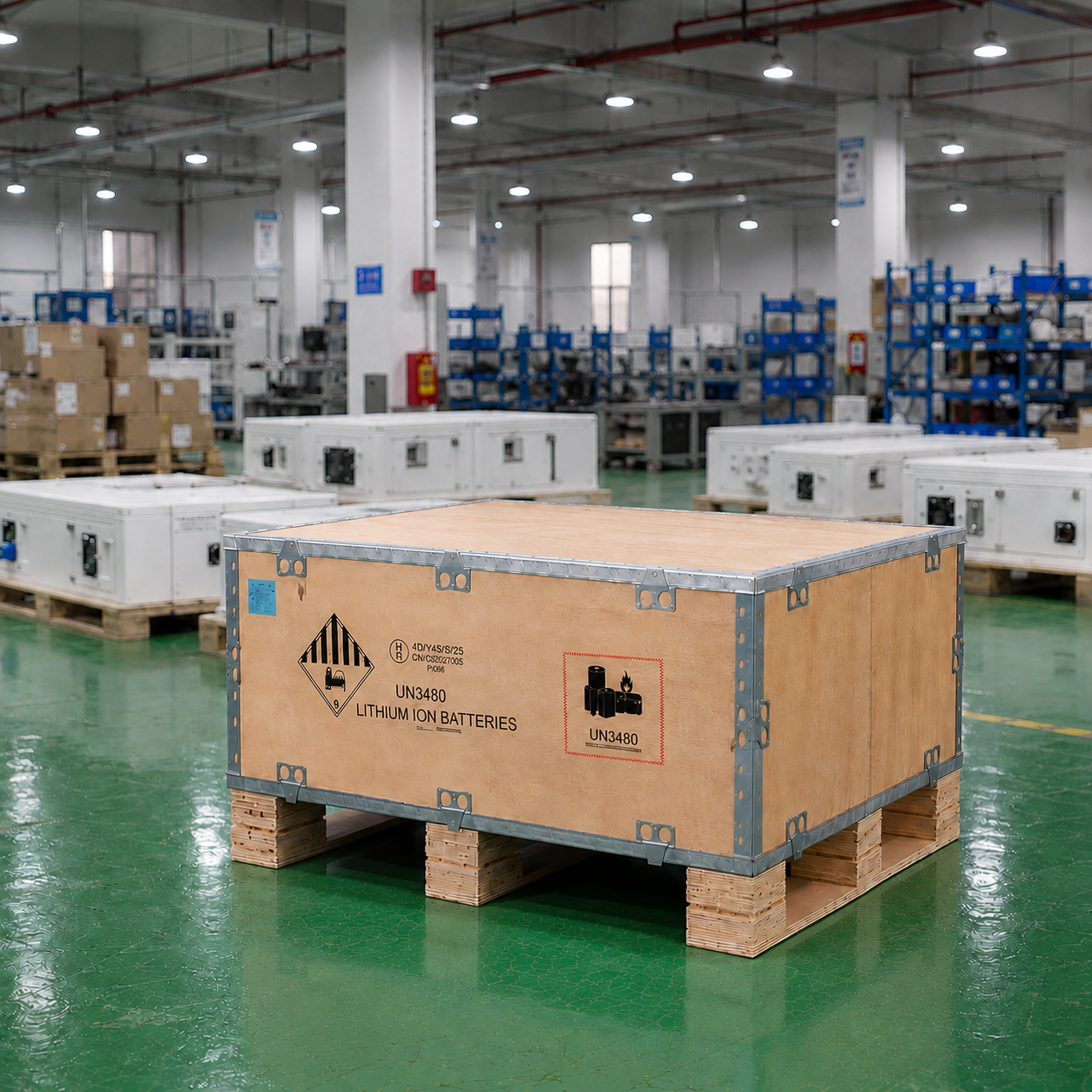

Packaging
The reference package dimensions are 1,270 × 720 × 370 mm and the packaged weight is 128 kg. The final packing method, dimensions and weight are subject to actual delivery and confirmed order requirements.
OEM/ODM Available
OEM/ODM support includes customized brand logo, product color, communication protocol, inverter matching, packaging and manuals.
Battery Specifications
|
Parameter |
value |
|
Battery Chemistry |
LiFePO₄ |
|
Battery Specification |
51.2V / 200Ah |
|
Nominal Energy |
10.24kWh |
|
Operating Voltage Range |
40–58.4V |
|
Cycle Life |
≥6,000 Cycles to 70% SOH |
|
Battery Expansion |
Up to 14 Battery Modules, Subject to System Configuration |
|
Parallel Units |
1-9 complete units |
|
Three-Phase Output |
Supported with 3 or more units in parallel |
PV & AC Specifications
|
Parameter |
value |
|
Maximum PV Input Power |
5,500W |
|
PV Input Voltage Range |
120-500Vdc |
|
Rated Output Power |
5,500W |
|
Rated Output Voltage |
220/230/240Vac ±5% (L+N+PE) |
|
AC Input Voltage - Normal Mode |
90-280Vac |
|
AC Input Voltage - UPS Mode |
170-280Vac |
|
Rated Frequency |
50/60Hz |
|
Waveform |
Pure Sine Wave |
Communication, Dimensions & Installation
|
Parameter |
value |
|
Communication Interfaces |
RS485 / CAN / Dry Contact / Wi-Fi / 4G |
|
Status Indicators |
Running / Alarm / SOC |
|
Charging Modes |
Solar Only / Utility Priority / Solar Priority / Hybrid Charging |
|
Installation |
Wall-Mounted |
|
Net Dimensions (W × D × H) |
1,100 × 540 × 160 mm (excluding mounting parts) |
|
Net Weight |
100 kg |
|
Package Dimensions (W × D × H) |
1,270 × 720 × 370 mm |
|
Packaged Weight |
128 kg |
Operating Temperature
|
Parameter |
value |
|
Charging Temperature |
0°C to 55°C |
|
Discharging Temperature |
−20°C to 60°C |
|
Storage Temperature |
−10°C to 45°C |
| Available Documents | MSDS / UN38.3 / IEC documentation / Transport Appraisal Report / CE |
