Applications：
Cell Information
The system uses high-consistency, safe, reliable and long-life LiFePO4 cells. The cell brand and final specification are confirmed in the order.
Certifications & Documents
Available documents include MSDS, UN38.3, IEC documentation and a Transportation Appraisal Report, subject to the confirmed product configuration and destination-market requirements. Please verify the exact certificate holder and model coverage before ordering.
Compatible Inverters
Communication matching is available for selected models from Victron, Voltronic, SMA, AISWEI, Studer, GoodWe, Growatt and Deye. Final compatibility must be confirmed according to the specific inverter model and communication protocol.
MOQ
MOQ is 1 unit for standard products. Customized orders are subject to the confirmed configuration and customization requirements.
Sample Available
Sample orders are available for product evaluation and inverter communication testing before bulk purchasing.
Production Lead Time
Production lead time is typically 15–25 working days after order confirmation, subject to order quantity, product configuration, customization requirements and the current production schedule.

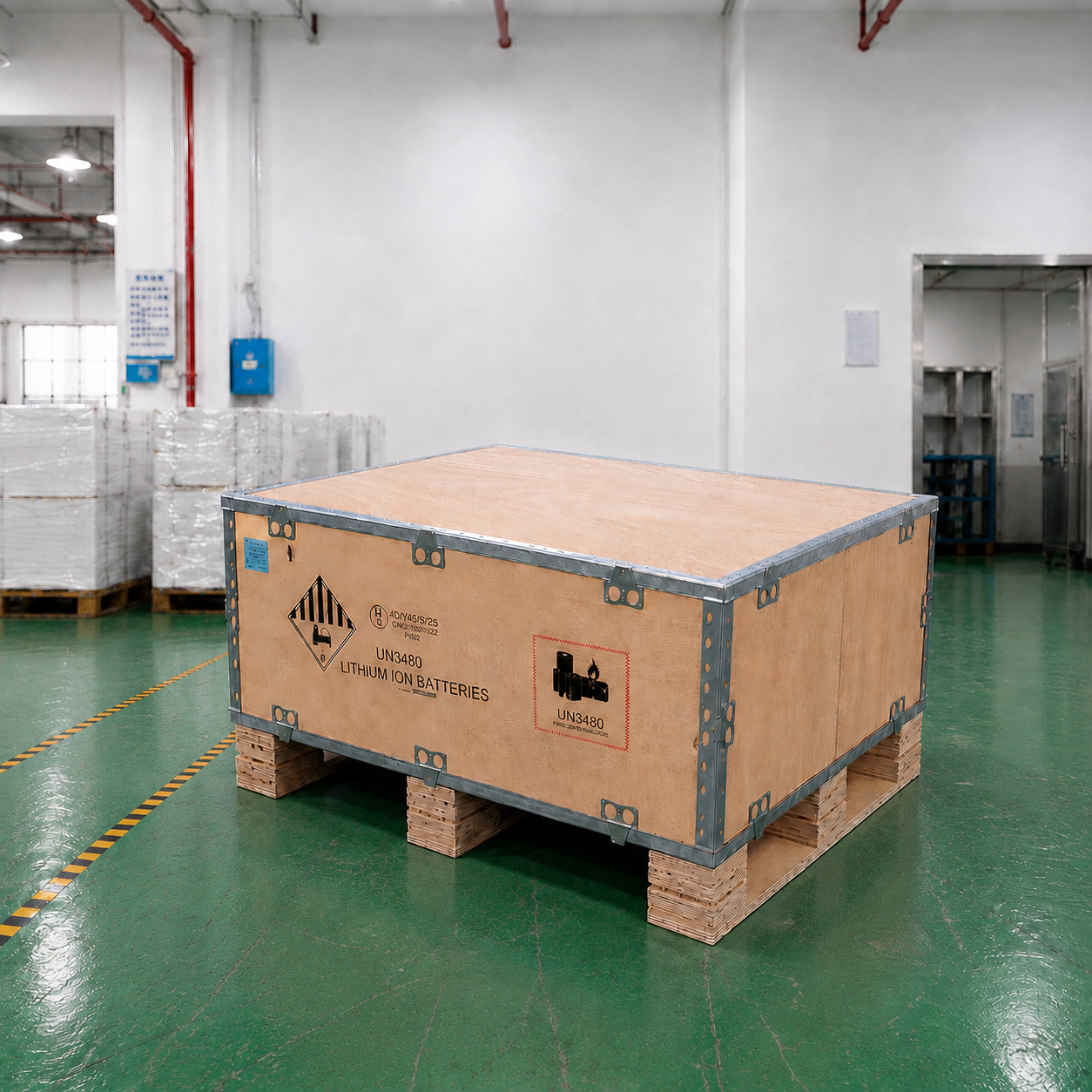

Packaging
Reference package dimensions are 920 × 612 × 330 mm and gross weight is 104 kg. The final packing method, dimensions and weight are subject to actual delivery and confirmed order requirements.
OEM/ODM Available
OEM/ODM support includes customized brand logo, product color, communication protocol, inverter matching, packaging and manuals.
Battery Specifications
|
Parameter |
value |
|
Battery Chemistry |
LiFePO₄ |
|
Battery Specification |
51.2V / 314Ah |
|
Nominal Energy |
16kWh |
|
Operating Voltage Range |
40–58.4V |
|
Standard Charge/Discharge Current |
100A |
|
Maximum Continuous Charge/Discharge Current |
200A |
|
Cycle Life |
≥6,000 cycles (70%) |
|
Maximum Parallel Units |
15 Units |
Communication & Monitoring
|
Parameter |
value |
|
Communication Interfaces |
RS485 / CAN / Dry Contact |
|
Status Indicators |
Running / Alarm / SOC |
|
Bluetooth Monitoring |
Built‑in |
|
Inverter Communication |
CAN / RS485 |
Dimensions & Weight
|
Parameter |
value |
|
Installation |
Stackable Floor-Standing |
|
Base Type |
Floor Base / Optional Wheeled Cart |
|
Product Dimensions |
795 × 470 × 225 mm |
|
Net Weight |
115kg |
|
Package Dimensions |
844 × 519 × 386 mm |
|
Gross Weight |
130 kg |
Operating Temperature
|
Parameter |
value |
|
Charging Temperature |
0°C to 55°C |
|
Discharging Temperature |
−20°C to 60°C |
|
Storage Temperature |
−10°C to 45°C |
