Applications：
Cell Information
The standard configuration uses high-consistency, safe and reliable, long-life LiFePO4 cells. The cell brand, grade and final specification are confirmed in the order.
Certifications & Documents
Available documents include MSDS, UN38.3, IEC documentation and a Transportation Appraisal Report, subject to the confirmed product configuration and destination-market requirements. Please verify the exact certificate holder and model coverage before ordering.
Compatible Inverters
Communication matching is available for selected models from Victron, Voltronic, SMA, AISWEI, Studer, GoodWe, Growatt and Deye. Final compatibility must be confirmed according to the specific inverter model and communication protocol.
MOQ
MOQ is 1 unit for standard products. Customized orders are subject to the confirmed configuration and customization requirements.
Sample Available
Sample orders are available for product evaluation and inverter communication testing before bulk purchasing.
Production Lead Time
Production lead time is typically 15–25 working days after order confirmation, subject to order quantity, product configuration, customization requirements and the current production schedule.

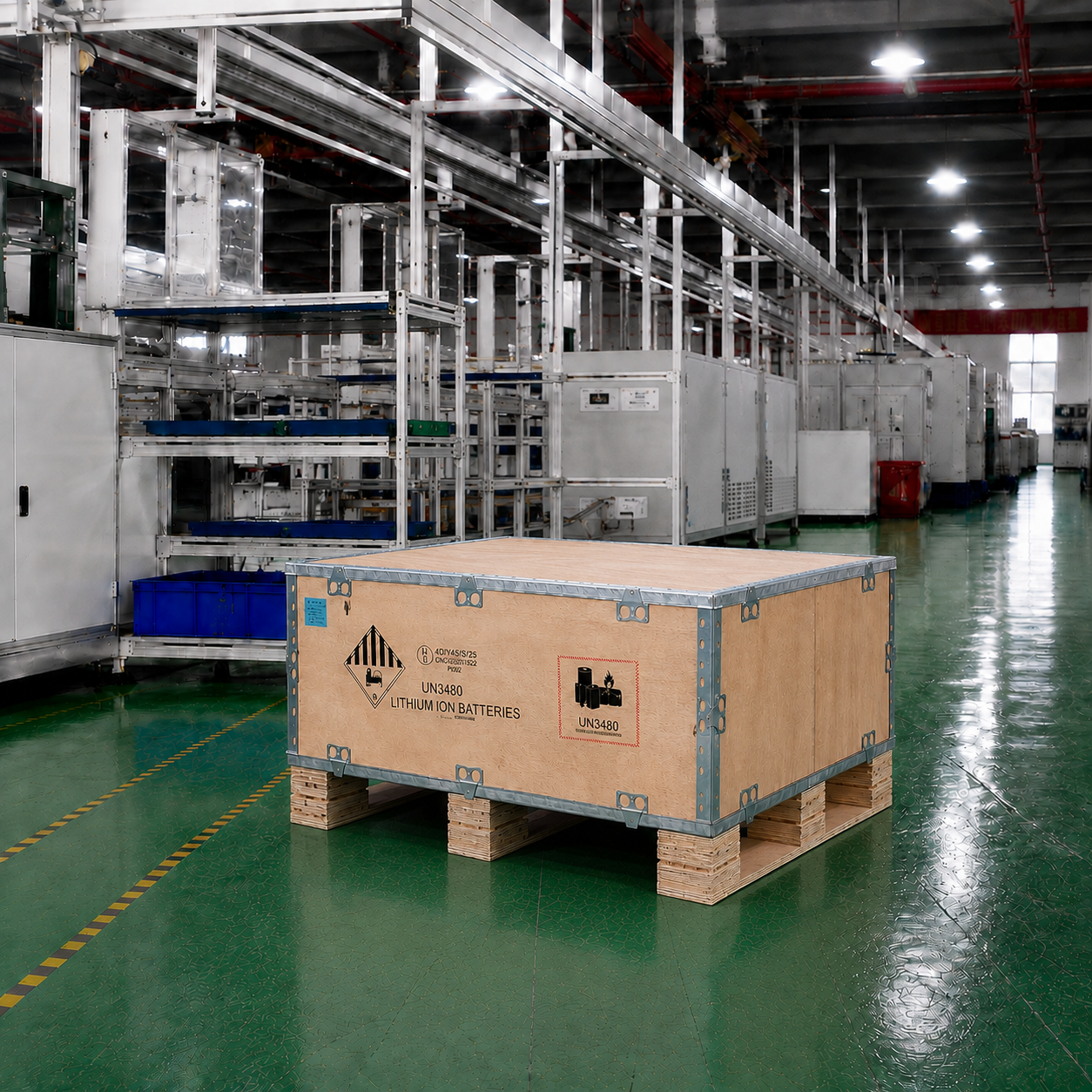

Packaging
Each battery module is packed individually. The reference package size is 730 × 465 × 360 mm and the packaged weight is 60 kg. Export-grade protective packaging and optional wooden cases are available; customized labels, packaging and manuals are supported.
OEM/ODM Available
OEM/ODM support includes customized brand logo, product color, communication protocol, inverter matching, packaging and manuals.
Battery Specifications
|
Parameter |
value |
|
Battery Chemistry |
LiFePO₄ |
|
Nominal Energy |
5.12kWh |
|
Nominal Voltage |
51.2V |
|
Rated Capacity |
100Ah |
|
Operating Voltage Range |
40–58.4V |
|
Standard Charge/Discharge Current |
50A |
|
Maximum Continuous Charge/Discharge Current |
100A |
|
Cycle Life |
≥6,000 cycles (70%) |
|
Maximum Parallel Units |
15 Units |
Communication & Monitoring
|
Parameter |
value |
|
Communication Interfaces |
RS485 / CAN / Dry Contact |
|
Status Indicators |
Running / Alarm / SOC |
|
Bluetooth Monitoring |
Built‑in |
|
Inverter Communication |
CAN / RS485 |
Dimensions & Weight
|
Parameter |
value |
|
Installation |
Stackable Floor-Standing |
|
Product Dimensions |
650 × 370 × 140 mm |
|
Net Weight |
42kg |
|
Package Dimensions |
730 × 465 × 360 mm |
|
Packaged Weight |
60 kg (one battery module per package) |
|
Base Dimensions (W × D × H) |
650 × 370 × 140 mm |
|
Base Weight |
Caster base: 10 kg; support-leg base: 5 kg |
|
Base Type |
Caster base or support-leg base (optional) |
Operating Temperature
|
Parameter |
value |
|
Charging Temperature |
0°C to 55°C |
|
Discharging Temperature |
−20°C to 60°C |
|
Storage Temperature |
−10°C to 45°C |
